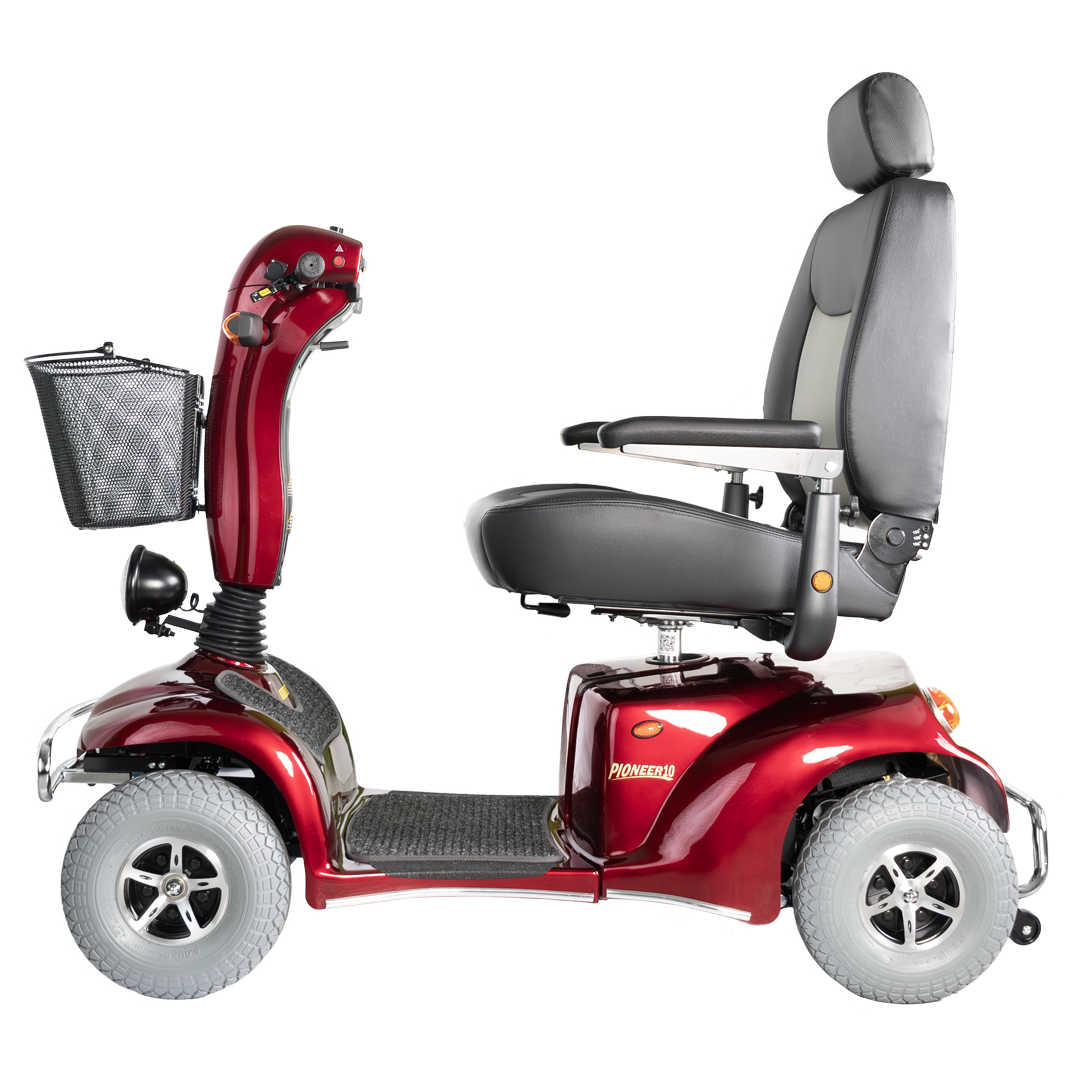

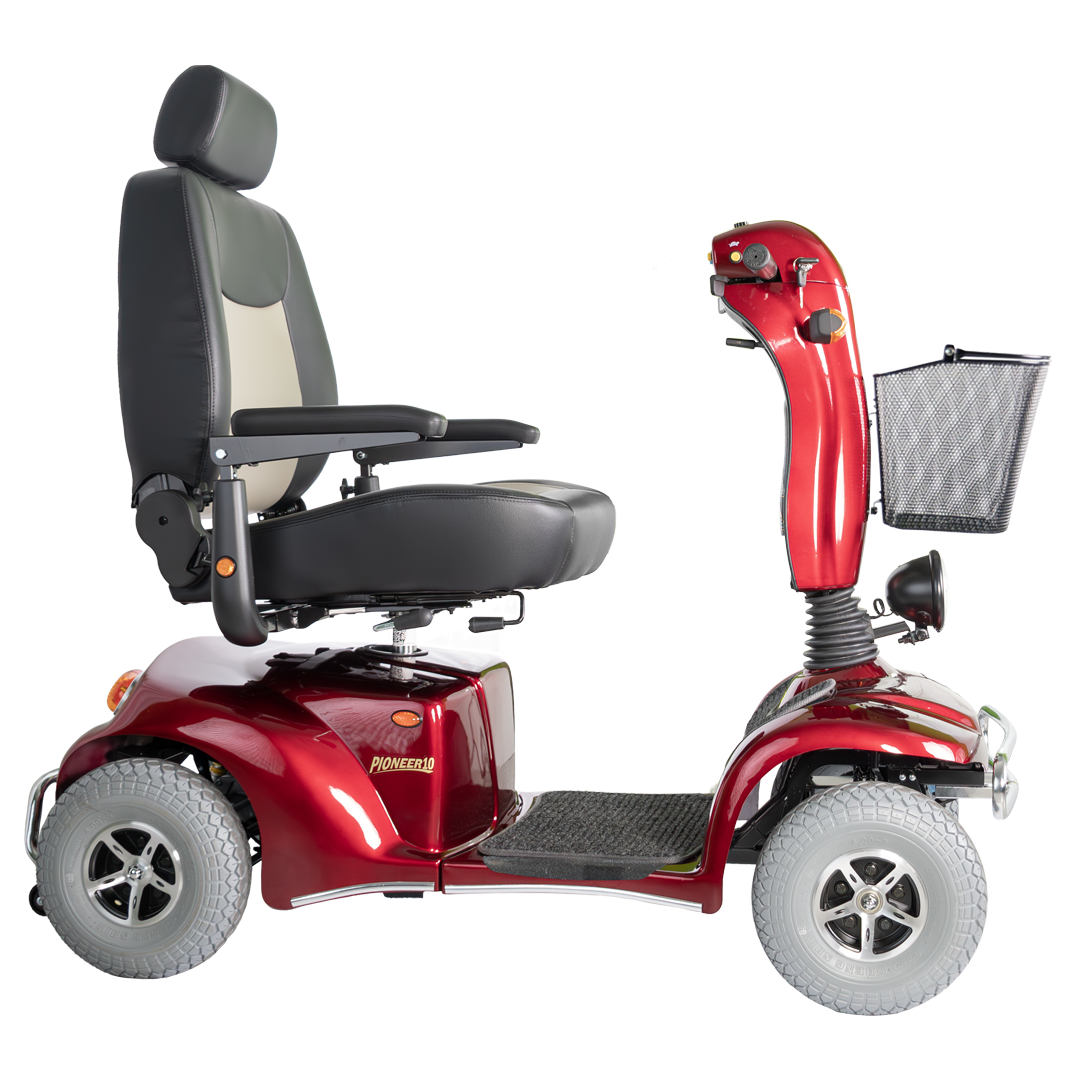

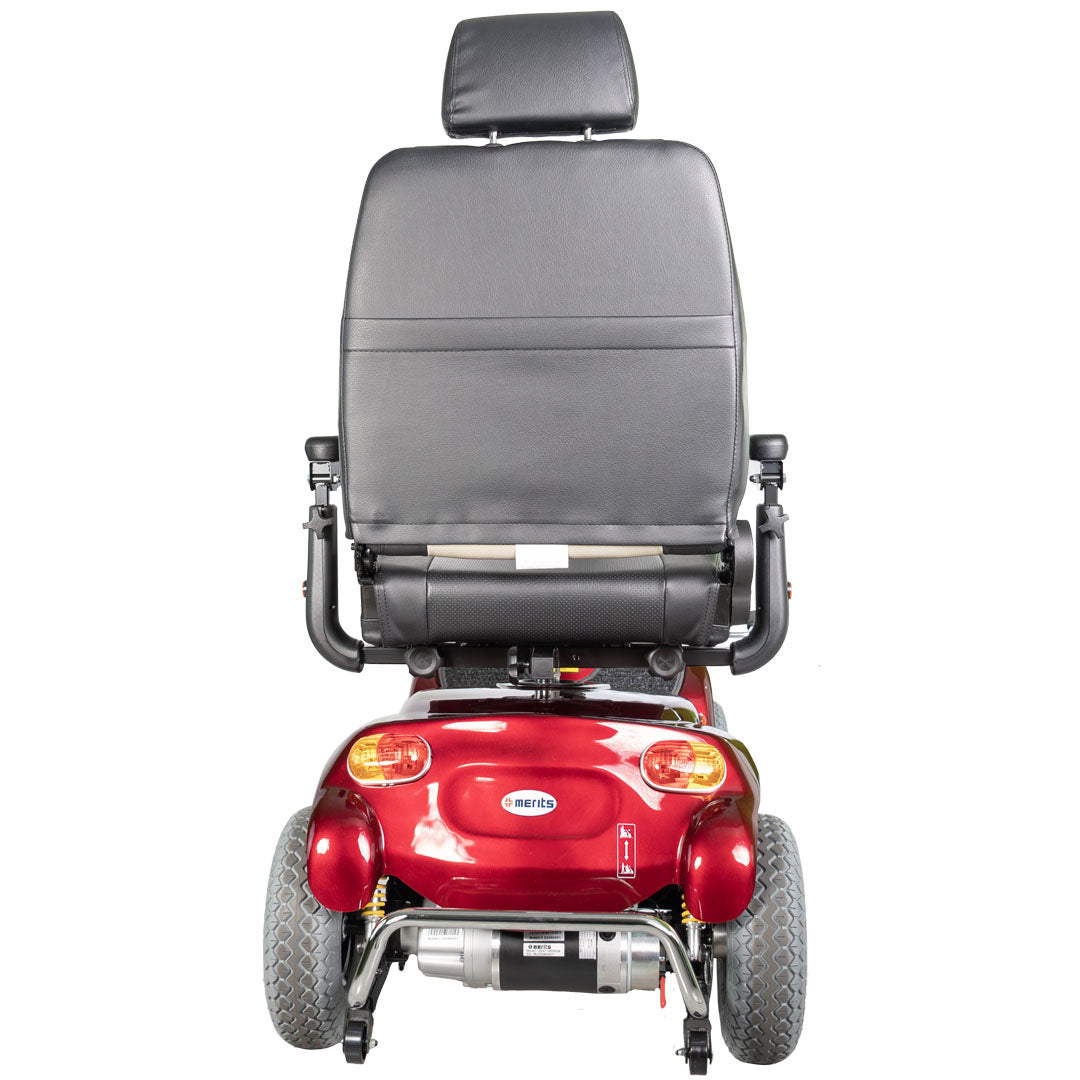

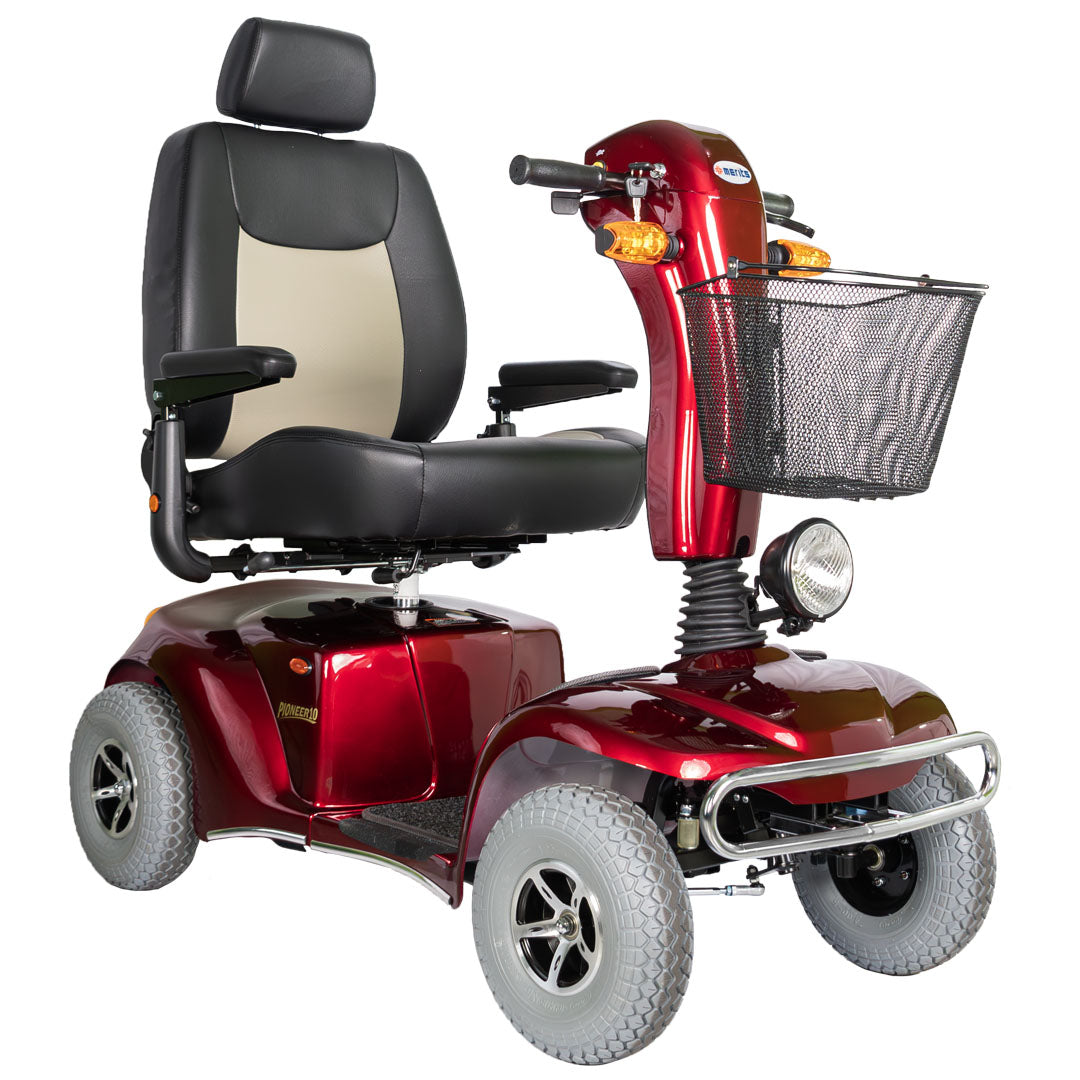

Example: Merits Pioneer 10 Heavy Duty Bariatric 4 Wheel Mobility Scooter S341

Product #	S341
Weight Capacity	500 lbs
Drivetrain	RWD
Maximum Speed	6 mph
Per-Charge Range	Up to 32 miles
Battery Size	2 × 75Ah M24 AGM
Ground Clearance	4"
Turning Radius	62"
Overall Length	59"
Overall Width	27"
Overall Height	47"
Seat-to-Ground Height	25"–28"
Seat-to-Deck Height	16"–19"
Seat Width	22"
Seat Depth	20"
Backrest Height	22"
Weight of Heaviest Piece	121 lbs
Total Weight	269 lbs
Motor	DC 24V, 400W
Controller	Dynamic Rhino2 160A
Charger	6A off-board
Gradient / Maximum Incline	12°
Front Wheels	12.5" diameter flat-free tires
Drive Wheels	12.5" diameter flat-free tires
Suspension	Yes
HCPCS Code	K0899
Color Options	Red

Heavy-duty capacity with four-wheel stability

The Merits Pioneer 10 is a heavy-duty four-wheel scooter built around a 500 lb weight capacity, up to 32 miles of range, and a substantial one-piece frame. Its four-wheel layout provides greater stability than a comparable three-wheel design, while the 62-inch turning radius reflects the additional space it requires to maneuver.

For everyday use where capacity, range, and ride support matter more than portability, the Pioneer 10 offers a distinctly full-size approach.

A spacious captain’s seat with multiple adjustments

The Pioneer 10 uses a 22" wide × 20" deep × 22" high sliding captain’s seat, providing generous seating space for longer periods of use.

The seat swivels for easier entry and exit, while the hydraulic, angle-adjustable tiller lets you position the controls around your preferred reach. Seat-to-ground height adjusts from 25" to 28", with a 16" to 19" seat-to-deck height.

Suspension and large flat-free tires support everyday outdoor travel

A built-in suspension system helps smooth out surface irregularities and provice extra comfort, while 12.5-inch flat-free tires are used at both the front and rear.

The Pioneer 10 also provides 4 inches of ground clearance, giving it more clearance than lower-profile travel scooters while eliminating the need to monitor tire pressure.

Built for longer trips between charges

The Pioneer 10 delivers up to 32 miles of range per charge and uses two 75Ah M24 AGM batteries with a 6A off-board charger.

Power comes from a 24V 400W motor paired with a Dynamic Rhino2 160A controller, while the scooter is rated for a 12-degree maximum gradient.

Automatic speed reduction helps manage turns

A built-in half-speed inhibit system automatically reduces speed when turning, helping keep cornering more controlled on a scooter of this size.

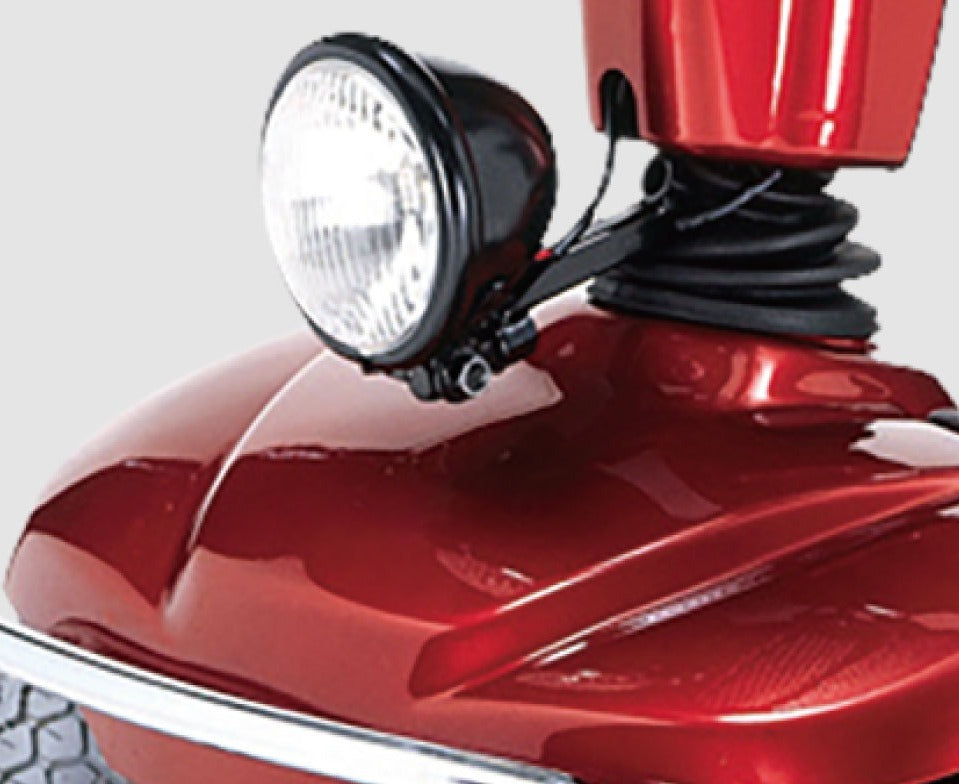

The Pioneer 10 also includes headlights, taillights, turn signals, and hazard lights, providing integrated lighting and signaling equipment for everyday operation.

Practical protection and storage are built in

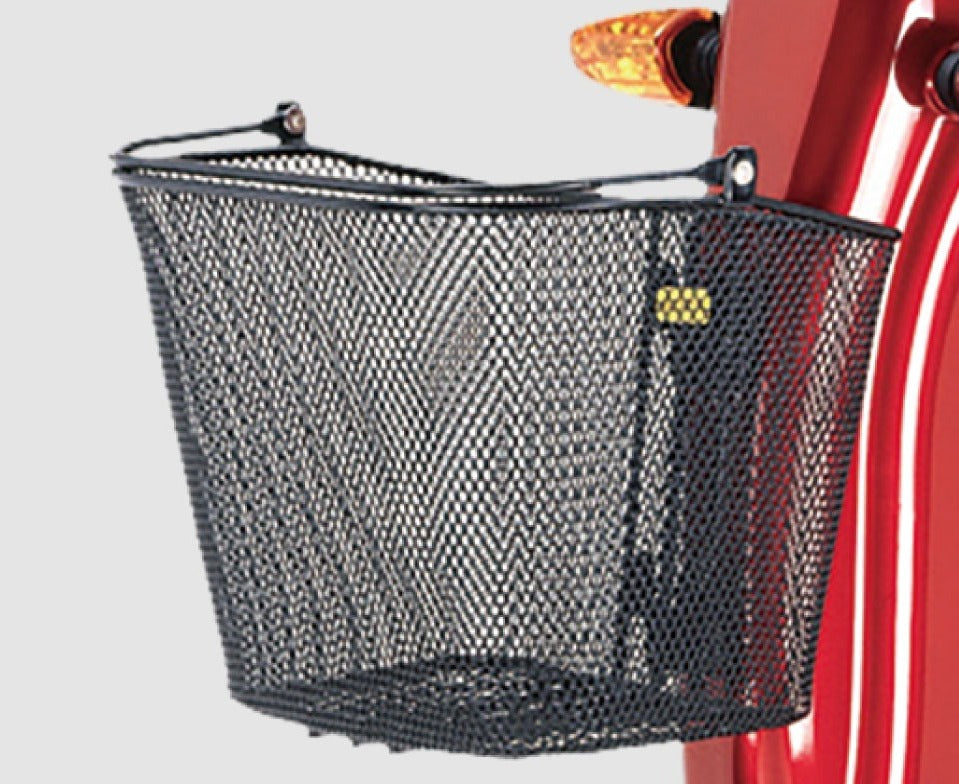

A chromed steel bumper helps protect the scooter’s front shroud, while the included front shopping basket provides convenient storage for smaller belongings.

Chrome detailing and a carpeted floor mat add finishing touches to a design centered primarily around durability, capacity, and long-range everyday use.

A heavy-duty scooter that favors stability, capacity, and range over portability

At approximately 269 lbs total, with a 121 lb heaviest component, the Pioneer 10 is substantially larger than a portable scooter and is not designed around frequent disassembly or lifting.

Its strengths are instead its 500 lb capacity, spacious 22-inch seat, suspension, 32-mile range, large flat-free tires, and four-wheel platform. If you plan to transport it regularly, a compatible vehicle lift can make loading and traveling with the scooter much more practical without requiring you to manually handle its substantial weight.

For everyday use where those capabilities matter more than compact transport, the Pioneer 10 provides a heavy-duty approach built around stability and extended travel.
