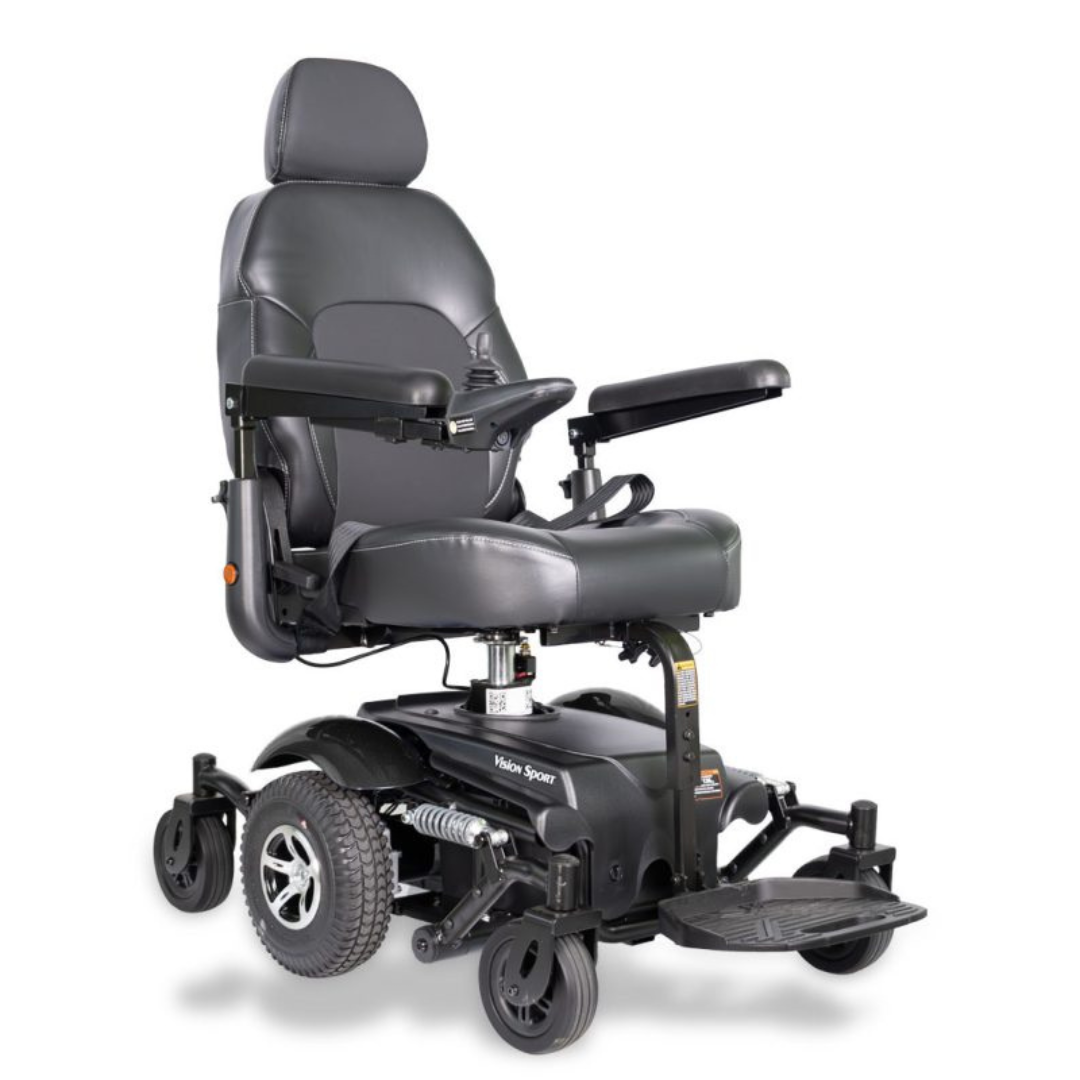

Example: Merits Vision Sport Full Size Electric Wheelchair with Seat Lift P326D

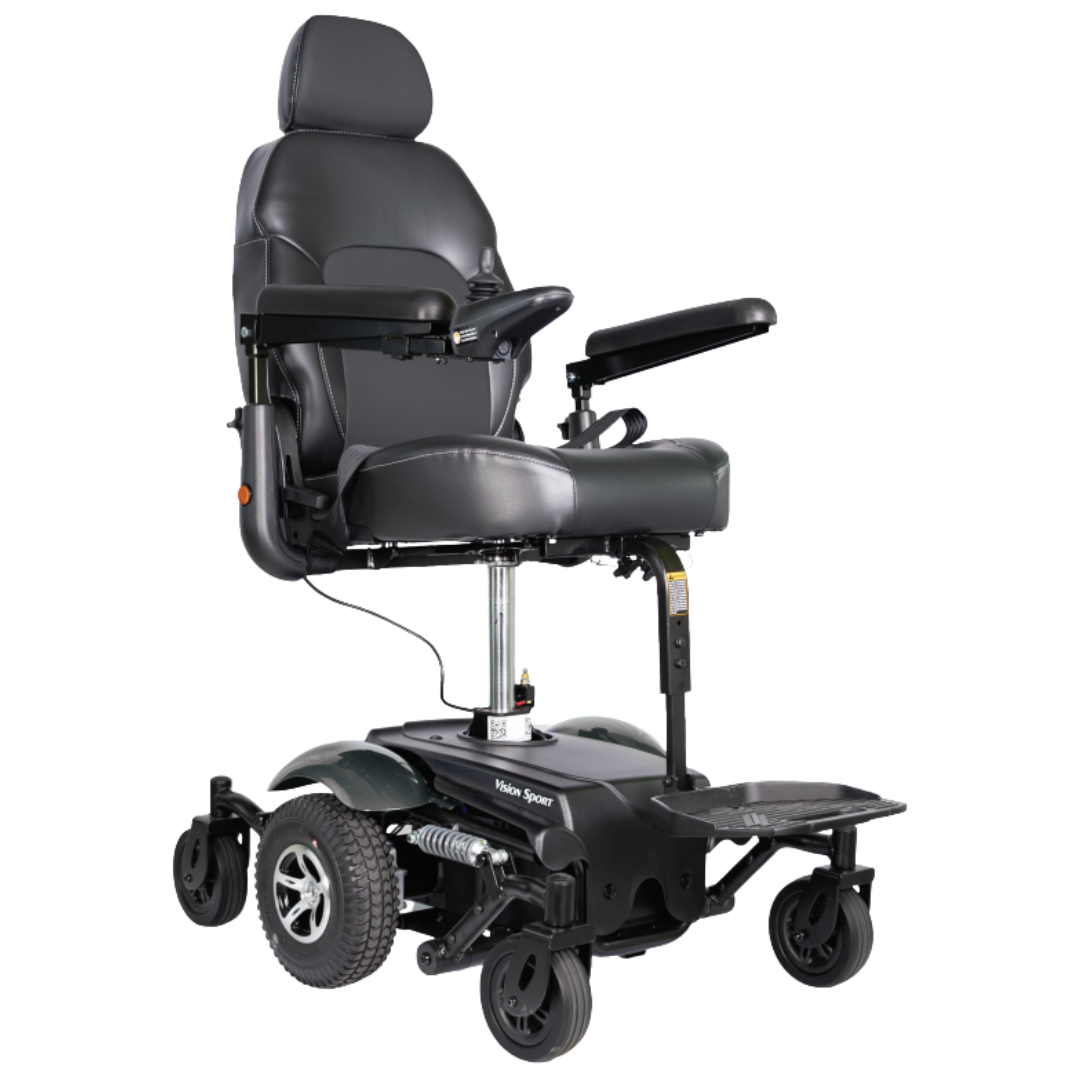

Example: Merits Vision Sport Full Size Electric Wheelchair with Seat Lift P326D

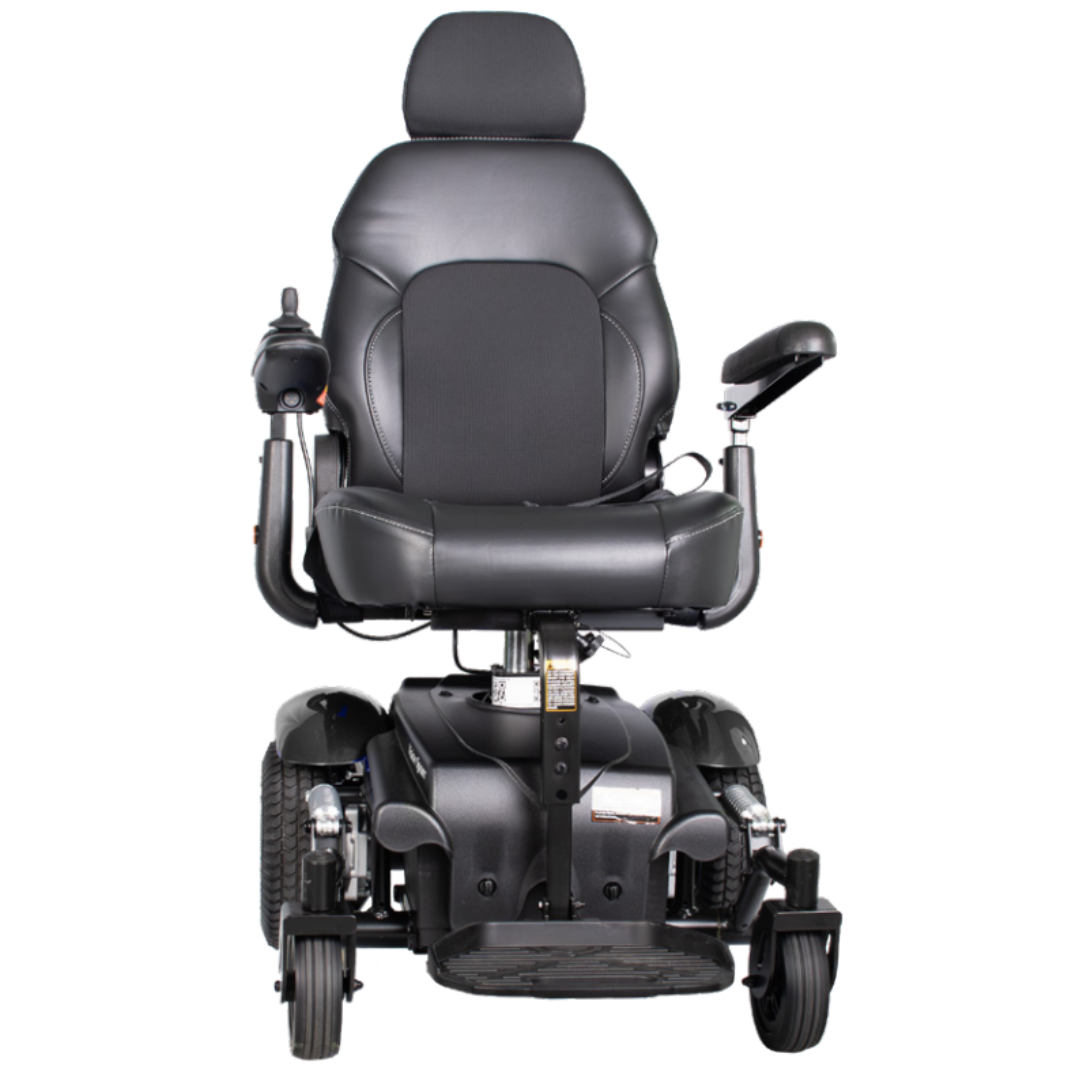

Example: Merits Vision Sport Full Size Electric Wheelchair with Seat Lift P326D

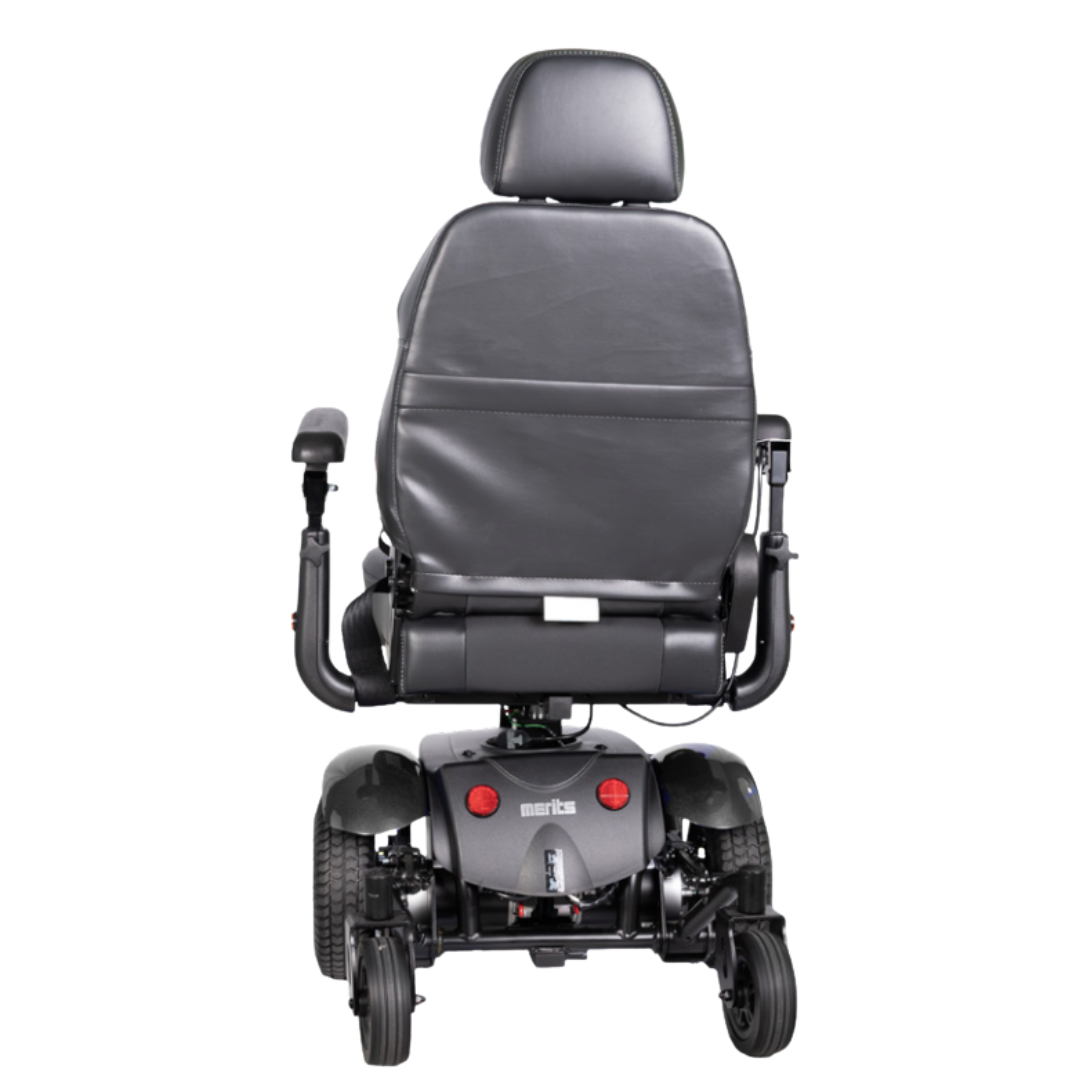

Example: Merits Vision Sport Full Size Electric Wheelchair with Seat Lift P326D
Example: Merits Vision Sport Full Size Electric Wheelchair with Seat Lift P326D

Example: Merits Vision Sport Full Size Electric Wheelchair with Seat Lift P326D

Brand: Merits Health

$3,279.00 $6,819.00
Services and Guarantees
Select to learn more
Free Quick Shipping Free Quick Shipping
Customer Support Customer Support
Price Match Guaranteed Price Match Guaranteed
White Glove Delivery Available White Glove Delivery Available
In Home Services And Repairs Available In Home Services And Repairs Available
Color: Red
Estimated Delivery Time: 3-6 Business Days.
  • 5-Year Limited Warranty

    5-Year Limited Warranty

    This product comes with a limited warranty. Certain parts are covered for up to five years, two years, 18 months, 13 months, and 6 months. There are certain parts that are excluded from the warranty and the warranty can become invalid for certain reasons.

    For the detailed warranty coverage, please: click here.

  • 30-Day Returns. Fees Apply.

    30-Day Returns. Fees Apply.

    This item can be returned this item can be returned within 30 days after receipt and has a 20% restocking fee.

    Other restrictions apply please click here to read more

Top Highlights

Key Features

  • 6.5" Elevating Seat
  • Independent Suspension can Absorb up to 250lbs on the footplate without tipping forward
  • Mid-Wheel with 20" turning radius
  • Semi-reclining ergonomic seat reclines up to 135°
  • Low center of gravity with 6 wheels delivers a smooth and stable ride.
  • Optional 16"- 20" seat width
  • Dual in-line motors for enhanced efficiency, torque, range and performance.
  • Swing back controller bracket is standard.
  • Height and width adjustable armrest with height adjustable seat
  • Removable shroud for easy maintenance access
  • Patented articulation mechanism allows front wheels climbing up the step/ threshold easily.
  • Large flip-up aluminum footplate, height, angle and depth adjustable
  • 10" sold drive tires
  • VR2 joystick is programming via PP1 programmer

Key Specifications

  • Weight Capacity: 300 lbs.
  • Total Weight: 214 lbs.
  • Heaviest Piece: 120 lbs.
  • Turning radius is 20"
  • Ground Clearance: 2"
  • Max Speed: 5 mph
  • Driving Range: up to 18 miles

Specifications & Documents
View Product Manual
Product #P326D
Weight Capacity300 lbs
DrivetrainMWD
Seat TypeCaptain or Pan
Maximum Speed5 mph
Per-Charge RangeUp to 18 miles
Battery Size2 × 35Ah, 12V U1
Ground Clearance2"
Turning Radius20"
Overall Length34"
Overall Width24"
Overall Height48.5"
Seat-to-Floor Height20.5"–29.5"
Seat Elevation6.5"
Seat Width18"–20" standard; 16" optional
Seat Depth16"–20"
Backrest Height20"
Weight of Heaviest Piece120 lbs
Total Weight214 lbs
MotorDC 24V, 160W
ControllerP&G VR2 60A
Charger4A off-board
Gradient / Maximum Incline6°
Front Wheels6" diameter solid tires
Drive Wheels10" diameter solid tires
Rear Wheels6" diameter solid tires
HCPCS CodeK0830 / K0831
Color OptionsRed, Black

Warranty & Returns

Returns

  • The item must be unused and in original, brand-new condition
  • All original packaging, materials, manuals, accessories, tools, and protective wrapping must be included
  • The scooter must be returned in its original box with all internal packing materials to prevent damage in transit
  • Returns must be requested within 30 days of the delivery date
  • A 20% restocking fee applies to all approved returns
  • Customers are responsible for return shipping costs unless the return is due to a verified manufacturer defect
  • A return authorization (RMA) must be obtained before shipping the item back
  • The product must not show signs of use, wear, scratches, debris, odors, or tire marks
  • Products that arrive to the warehouse damaged due to improper packaging may be denied or subject to additional fees
  • Battery-powered items must be returned with batteries properly installed and secured as originally packaged
  • Refunds are issued once the item is inspected and approved by the manufacturer

Merits Limited 5-Year Warranty

Merits Health Products, Inc. will repair or replace the following items that have a manufacturing defect. Credit will be given following inspection by an authorized representative of Merits Health Products, Inc. into the material or workmanship.

Warranty Service

Merits Health Products, Inc. retains the right to replace the warranted part(s) with either refurbished or new part(s) at their discretion. Any costs related to labor, service calls, transportation, freight, or other charges associated with the installation of warranted part(s) are the responsibility of the customer. This warranty gives you specific rights and you may also have other rights which may vary from state to state.

5-Year Warranty from the original date of consumer purchase

  • Base Frame
  • Seatbelt

18-Month Warranty from the original date of consumer purchase

  • Joystick / Power Module / Controller
  • Motor / Gearbox / Brake Assembly
  • Circuit Boards
  • Angle Sensor
  • Electrical Harness
  • Charger
  • Transaxle
  • Cushions

13-Month Warranty from the original date of consumer purchase

  • Seat Post / Mount
  • Power Seat Actuator
  • Caster Beam
  • Joystick Mounting Bracket
  • Metal Sitting Frame
  • Anti-Tipper Assembly
  • 31Ah or above batteries
  • Powered Footplate
  • Armrest Bracket (metal part only)
  • Caster Forks

6-Month Warranty from the original date of consumer purchase

  • Bearings / Bushings
  • Front Riggings
  • Non-Powered Footplate
  • Swivel Seat Mechanism
  • Batteries less than 31Ah supplied by Merits

2-Year Warranty from the original date of consumer purchase

  • Non-Wear Components
  • Circuit Boards
  • Fasteners
  • Electrical (Harness & Switches)

Warranty Exclusions: The following items are excluded from warranty

  • Tires & tubes
  • Fuses & bulbs
  • Battery cases
  • Plastic / rubber parts
  • Motor brushes
  • Brake pads
  • Upholstery including seat/arm pads/padding
  • Painted surfaces including shrouds/fender

Warranty becomes invalid on any parts damaged from

  • Acts of nature, loss, or theft
  • Commercial use
  • Neglect, improper operation, or maintenance/repair
  • Units altered or serviced by an agency not authorized by Merits Health Products, Inc.
  • Serial-numbered products if the serial number has been removed or defaced

Part(s) purchased outside of warranty have 90 days to report manufactured defect

Description

Merits has been first started in Taiwan in 1986 and expanded into the U.S.A. in 1989. They specialize in selling mobility scooters, electric wheelchairs, and stairlifts. They've been a respected name in the industry for decades known for their fast shipping, reliable products, and great support.

Their mission is to enhance independence and accessibility for all—empowering people to live life to the fullest with reliable, purpose-built products designed for comfort, confidence, and long-lasting performance.

You can learn more about what they sell by clicking here.

Raise your seated position by 6.5 inches

The Merits Vision Sport with Lift builds a 6.5-inch power elevating seat into its mid-wheel-drive platform. The lift can bring you closer to eye level during conversations, improve access to higher surfaces, and provide additional positioning flexibility for transfers and everyday activities.

Mid-wheel drive keeps maneuverability tight

With true mid-wheel drive and a 20-inch turning radius, the Vision Sport with Lift is designed to maneuver comfortably through homes, hallways, shops, and other spaces where turning room is limited.

Its Vision Sport platform also incorporates independent suspension, which Merits states can support up to 250 lbs on the footplate without tipping forward.

Premium ergonomic captain's seat with white stitching semi-reclines up to 135°

The premium ergonomic captain's seat semi-reclines up to 135°, allowing you to change your seated position throughout the day. Seat depth can be configured from 16" to 20", with multiple seat-width options available.

An optional elevating leg-rest kit provides another way to tailor the chair's seating configuration.

Solid tires keep routine maintenance simple

The Vision Sport with Lift uses 10-inch solid drive tires with 6-inch solid front and rear casters. Their solid construction eliminates the need to monitor tire pressure.

The mid-wheel layout keeps the drive wheels near the chair's center, combining the larger drive tires with the compact handling that defines the Vision Sport platform.

Straightforward controls for driving and seat elevation

The P326D uses a P&G VR2 60A controller, with the seat lift operated through a dedicated toggle or available joystick control upgrade. The joystick system can also be programmed using Merits' PP1 programmer.

A swing-away joystick is available, allowing the controller to move aside when approaching tables, desks, and other surfaces.

Up to 18 miles of everyday range

The Vision Sport with Lift travels at up to 5 mph, provides up to 18 miles of range per charge, and supports up to 300 lbs.

Its combination of mid-wheel maneuverability, independent suspension, semi-reclining seating, and powered seat elevation gives it a broader range of positioning features than the standard Vision Sport.

Full-size capability with powered elevation built in

At 214 lbs total, with a 120 lb heaviest piece, the P326D is a substantial full-size power wheelchair rather than a portable model.

If you plan to transport it regularly, a compatible vehicle lift can make loading and traveling with the chair much more practical without requiring you to manually handle its substantial weight.

An unoccupied transit tie-down kit is also available as an accessory.

Take your next step

Order today and your order would arrive in an estimated 3-6 Business Days. .

Have any questions? Give us a call at +1 866 434-8592 during our customer support hours: Mon–Fri 9:00am → 5:00pm CT, or fill out our contact form here.
