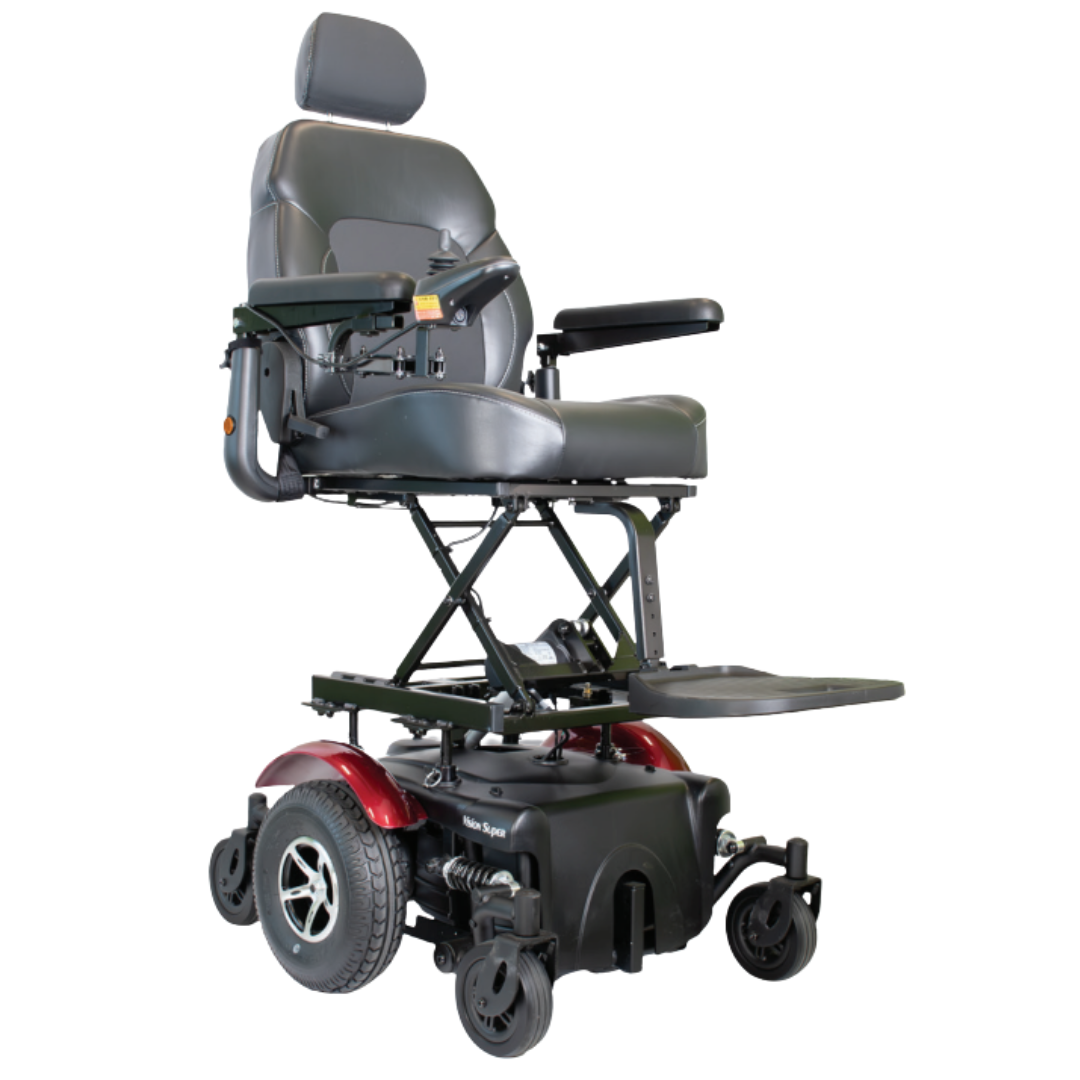

Example: Merits Vision Super Heavy Duty Electric Wheelchair with Seat Lift P3274
Example: Merits Vision Super Heavy Duty Electric Wheelchair with Seat Lift P3274
Example: Merits Vision Super Heavy Duty Electric Wheelchair with Seat Lift P3274

Example: Merits Vision Super Heavy Duty Electric Wheelchair with Seat Lift P3274

Brand: Merits Health

$5,379.00 $9,979.00
Services and Guarantees
Select to learn more
Free Quick Shipping Free Quick Shipping
Customer Support Customer Support
Price Match Guaranteed Price Match Guaranteed
White Glove Delivery Available White Glove Delivery Available
In Home Services And Repairs Available In Home Services And Repairs Available
Color: Red
Estimated Delivery Time: 13-21 Business Days.
  • 5-Year Limited Warranty

    5-Year Limited Warranty

    This product comes with a limited warranty. Certain parts are covered for up to five years, two years, 18 months, 13 months, and 6 months. There are certain parts that are excluded from the warranty and the warranty can become invalid for certain reasons.

    For the detailed warranty coverage, please: click here.

  • 30-Day Returns. Fees Apply.

    30-Day Returns. Fees Apply.

    This item can be returned this item can be returned within 30 days after receipt and has a 20% restocking fee.

    Other restrictions apply please click here to read more

Top Highlights

Key Features

  • Mid-Wheel with 20" turning radius
  • Semi-reclining ergonomic seat reclines up to 135°
  • Low center of gravity with 6 wheels delivers a smooth and stable ride.
  • Optional 18"- 22" seat width
  • Customizable 20"-22" seat depth
  • Dual in-line motors for enhanced efficiency, torque, range and performance.
  • Swing back controller bracket is standard.
  • Patented articulation mechanism allows front wheels climbing up the step/ threshold easily.
  • Height and width adjustable armrest with height adjustable seat
  • Removable shroud for easy maintenance access
  • Large flip-up aluminum footplate, height, angle and depth adjustable
  • Dynamic LiNX controller for convenient Bluetooth programming and diagnostics

Key Specifications

  • Weight Capacity: 400 lbs.
  • Total Weight: 243 lbs.
  • Heaviest Piece: 151 lbs.
  • Turning radius is 21"
  • Ground Clearance: 2.2"
  • Max Speed: 5 mph
  • Driving Range: up to 20 miles

Specifications & Documents
View Product Manual
Product #P3274
Weight Capacity400 lbs
DrivetrainMWD
Seat TypeCaptain or Pan
Maximum Speed5 mph
Per-Charge RangeUp to 20 miles
Battery Size2 × 50Ah 22NF AGM
Ground Clearance2.2"
Turning Radius21"
Overall Length35.4"
Overall Width27.2"
Overall Height48"
Seat-to-Floor Height24"–34" with lift
Seat Elevation10"
Seat Width20"–22"
Seat Depth18"–22"
Backrest Height20"–22"
Weight of Heaviest Piece121 lbs
Total Weight243 lbs
Motor2 × DC 24V, 300W
ControllerLiNX / P&G VR2
Charger5A off-board
Gradient / Maximum Incline8°
Front Wheels6" diameter solid tires
Drive Wheels12" diameter flat-free tires
Rear Wheels6" diameter solid tires
HCPCS CodeK0824 / K0825 / K0830 / K0831
Color OptionsRed, Black

Warranty & Returns

Returns

  • The item must be unused and in original, brand-new condition
  • All original packaging, materials, manuals, accessories, tools, and protective wrapping must be included
  • The scooter must be returned in its original box with all internal packing materials to prevent damage in transit
  • Returns must be requested within 30 days of the delivery date
  • A 20% restocking fee applies to all approved returns
  • Customers are responsible for return shipping costs unless the return is due to a verified manufacturer defect
  • A return authorization (RMA) must be obtained before shipping the item back
  • The product must not show signs of use, wear, scratches, debris, odors, or tire marks
  • Products that arrive to the warehouse damaged due to improper packaging may be denied or subject to additional fees
  • Battery-powered items must be returned with batteries properly installed and secured as originally packaged
  • Refunds are issued once the item is inspected and approved by the manufacturer

Merits Limited 5-Year Warranty

Merits Health Products, Inc. will repair or replace the following items that have a manufacturing defect. Credit will be given following inspection by an authorized representative of Merits Health Products, Inc. into the material or workmanship.

Warranty Service

Merits Health Products, Inc. retains the right to replace the warranted part(s) with either refurbished or new part(s) at their discretion. Any costs related to labor, service calls, transportation, freight, or other charges associated with the installation of warranted part(s) are the responsibility of the customer. This warranty gives you specific rights and you may also have other rights which may vary from state to state.

5-Year Warranty from the original date of consumer purchase

  • Base Frame
  • Seatbelt

18-Month Warranty from the original date of consumer purchase

  • Joystick / Power Module / Controller
  • Motor / Gearbox / Brake Assembly
  • Circuit Boards
  • Angle Sensor
  • Electrical Harness
  • Charger
  • Transaxle
  • Cushions

13-Month Warranty from the original date of consumer purchase

  • Seat Post / Mount
  • Power Seat Actuator
  • Caster Beam
  • Joystick Mounting Bracket
  • Metal Sitting Frame
  • Anti-Tipper Assembly
  • 31Ah or above batteries
  • Powered Footplate
  • Armrest Bracket (metal part only)
  • Caster Forks

6-Month Warranty from the original date of consumer purchase

  • Bearings / Bushings
  • Front Riggings
  • Non-Powered Footplate
  • Swivel Seat Mechanism
  • Batteries less than 31Ah supplied by Merits

2-Year Warranty from the original date of consumer purchase

  • Non-Wear Components
  • Circuit Boards
  • Fasteners
  • Electrical (Harness & Switches)

Warranty Exclusions: The following items are excluded from warranty

  • Tires & tubes
  • Fuses & bulbs
  • Battery cases
  • Plastic / rubber parts
  • Motor brushes
  • Brake pads
  • Upholstery including seat/arm pads/padding
  • Painted surfaces including shrouds/fender

Warranty becomes invalid on any parts damaged from

  • Acts of nature, loss, or theft
  • Commercial use
  • Neglect, improper operation, or maintenance/repair
  • Units altered or serviced by an agency not authorized by Merits Health Products, Inc.
  • Serial-numbered products if the serial number has been removed or defaced

Part(s) purchased outside of warranty have 90 days to report manufactured defect

Description

Merits has been first started in Taiwan in 1986 and expanded into the U.S.A. in 1989. They specialize in selling mobility scooters, electric wheelchairs, and stairlifts. They've been a respected name in the industry for decades known for their fast shipping, reliable products, and great support.

Their mission is to enhance independence and accessibility for all—empowering people to live life to the fullest with reliable, purpose-built products designed for comfort, confidence, and long-lasting performance.

You can learn more about what they sell by clicking here.

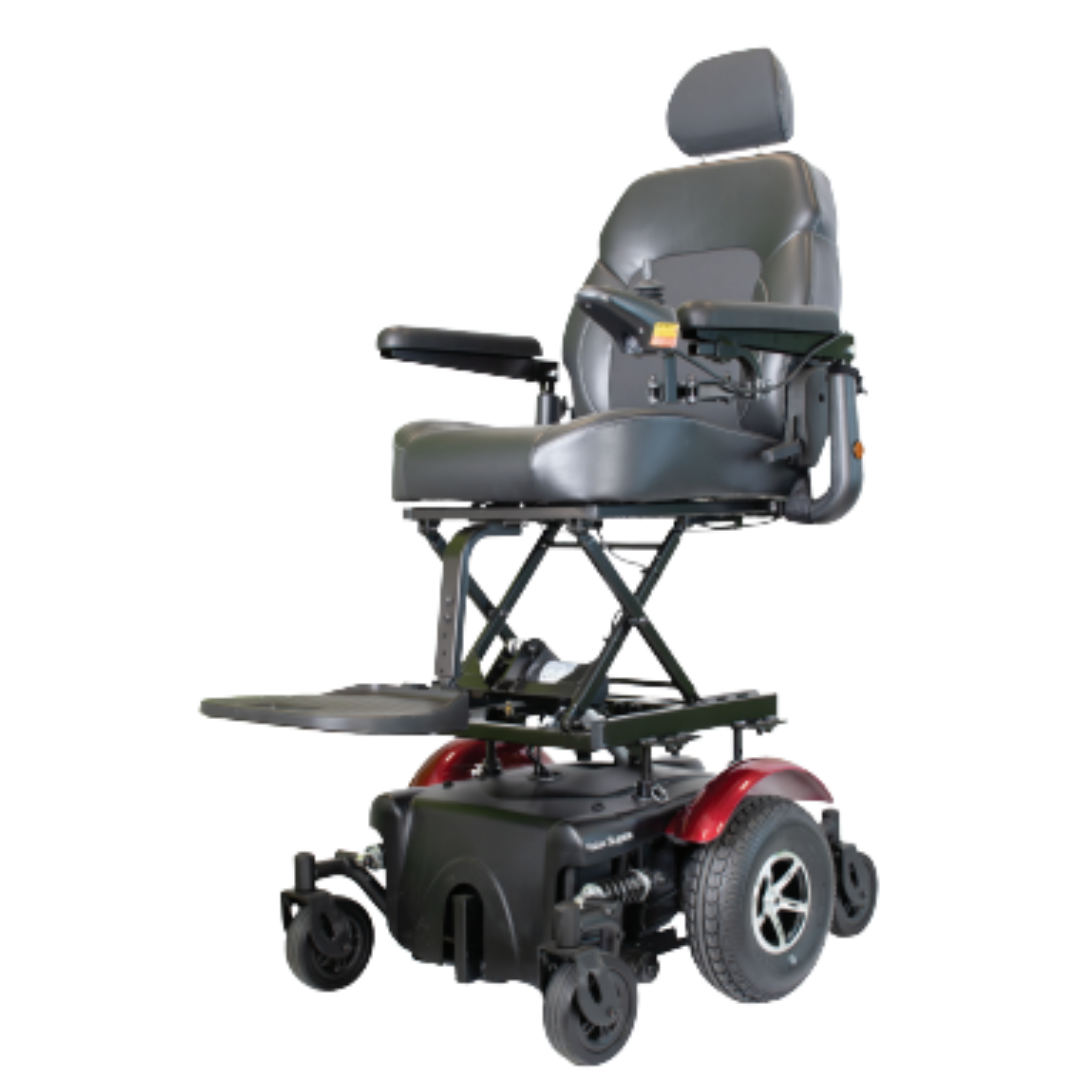

A 10-inch power seat lift adds substantial vertical positioning

The Merits Vision Super P3274 combines a heavy-duty mid-wheel-drive base with a 10-inch power scissor seat lift, allowing the seated position to rise substantially without transferring out of the chair. The lift model supports up to 400 lbs.

Mid-wheel drive keeps a heavy-duty chair maneuverable

Despite its larger capacity and powered seating system, the P3274 maintains a 21-inch turning radius. Its true mid-wheel-drive layout positions the drive wheels near the center of the chair, helping it maneuver through homes, hallways, shops, and other everyday spaces where turning room matters.

A patented articulation mechanism helps the front wheels climb over thresholds and similar changes in surface height more easily, improving how the chair approaches small obstacles.

Semi-reclining seating provides additional positioning flexibility

The premium ergonomic seat semi-reclines up to 135° and is available in 20" to 22" seat widths with 18" to 22" seat depths.

Captain or pan seating configurations are available, with optional elevating leg rests providing another way to tailor the seating system.

Large flat-free drive tires simplify everyday ownership

The P3274 rides on 12-inch flat-free drive tires positioned between 6-inch solid front and rear casters. Their construction removes the need to monitor tire pressure while retaining the six-wheel layout of the Vision Super platform.

Dual motors provide power for the heavy-duty platform

Two 24V 300W motors power the chair, paired with 50Ah 22NF AGM batteries. The P3274 travels at up to 5 mph and provides up to 20 miles of range per charge.

The lift model uses LiNX and P&G VR2 controls, with Merits supporting programming and diagnostic functionality within the control system.

Heavy-duty mobility with powered elevation built in

The Vision Super with Lift combines 400 lb capacity, mid-wheel maneuverability, 10 inches of powered seat elevation, semi-reclining seating, and up to 20 miles of range in one full-size chair.

At 243 lbs total, with a 121 lb heaviest piece, it is not designed around frequent manual lifting. If you plan to transport it regularly, a compatible vehicle lift can make loading and traveling with the chair much more practical without requiring you to manually handle its substantial weight.
