Example: Merits Atlantis Heavy Duty Bariatric Electric Wheelchair P710A
Free Quick Shipping
Customer Support
Customer Support Hours: Mon–Fri 9:00am → 5:00pm CT
Call Us: +1 866 434-8592
Send us a message: visit our contact page
Price Match Guaranteed
White Glove Delivery Available
In Home Services And Repairs Available
Top Highlights
Top Highlights
Key Features
Key Specifications
Specifications & Documents
Specifications & Documents
| Product # | P710A |
| Weight Capacity | 600 lbs |
| Drivetrain | RWD |
| Seat Type | Captain |
| Maximum Speed | 5 mph |
| Per-Charge Range | Up to 32 miles |
| Battery Size | 2 × 75Ah M24 AGM |
| Ground Clearance | 2.75" |
| Turning Radius | 31.5" |
| Overall Length | 33" |
| Overall Width | 32" |
| Overall Height | 41.5" |
| Seat-to-Floor Height | 22"–23" |
| Seat Width | 24" or 26" options |
| Seat Depth | 20"–22", adjustable in 1" increments |
| Backrest Height | 21.25" |
| Weight of Heaviest Piece | 167 lbs |
| Total Weight | 304 lbs |
| Motor | DC 24V, 300W |
| Controller | Dynamic LiNX |
| Charger | 6A off-board |
| Gradient / Maximum Incline | 10° |
| Front Wheels | 9" diameter pneumatic tires |
| Drive Wheels | 12" diameter pneumatic tires |
| Rear Wheels | 3" anti-tippers |
| HCPCS Code | K0826 / K0827 |
| Color Options | Candy Apple Red, Metallic Blue |
Warranty & Returns
Warranty & Returns
Description
Description
600 lb capacity built around a reinforced heavy-duty platform

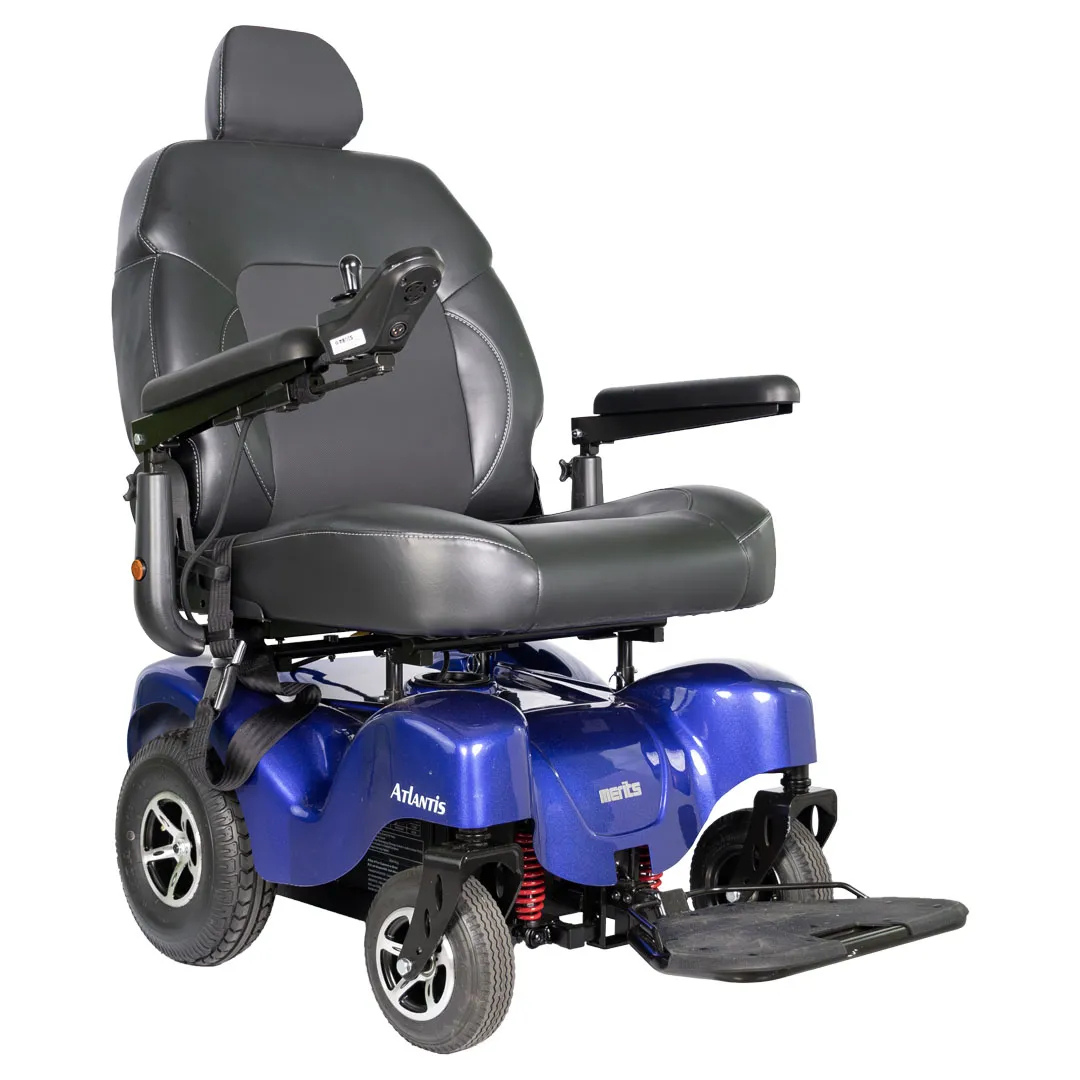

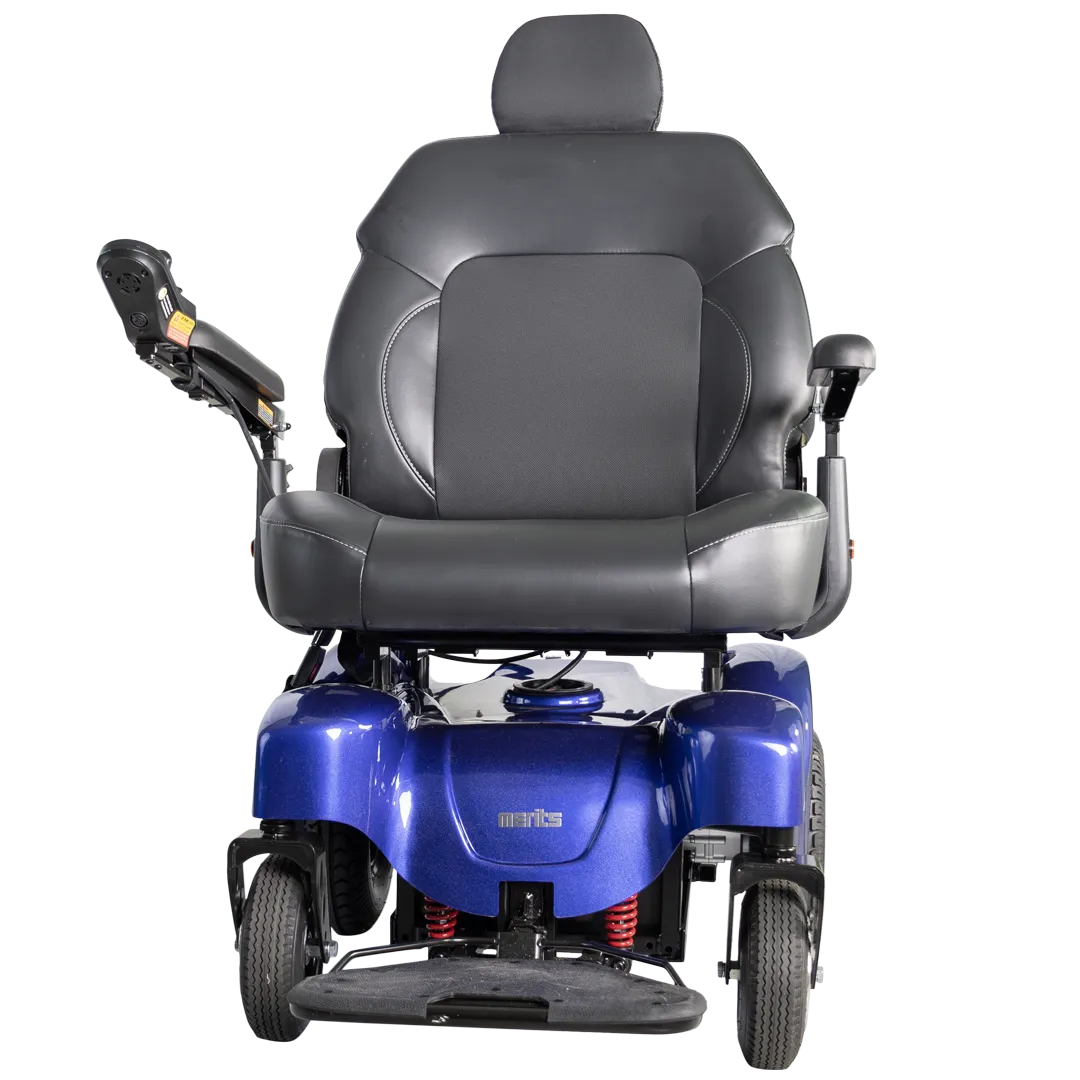

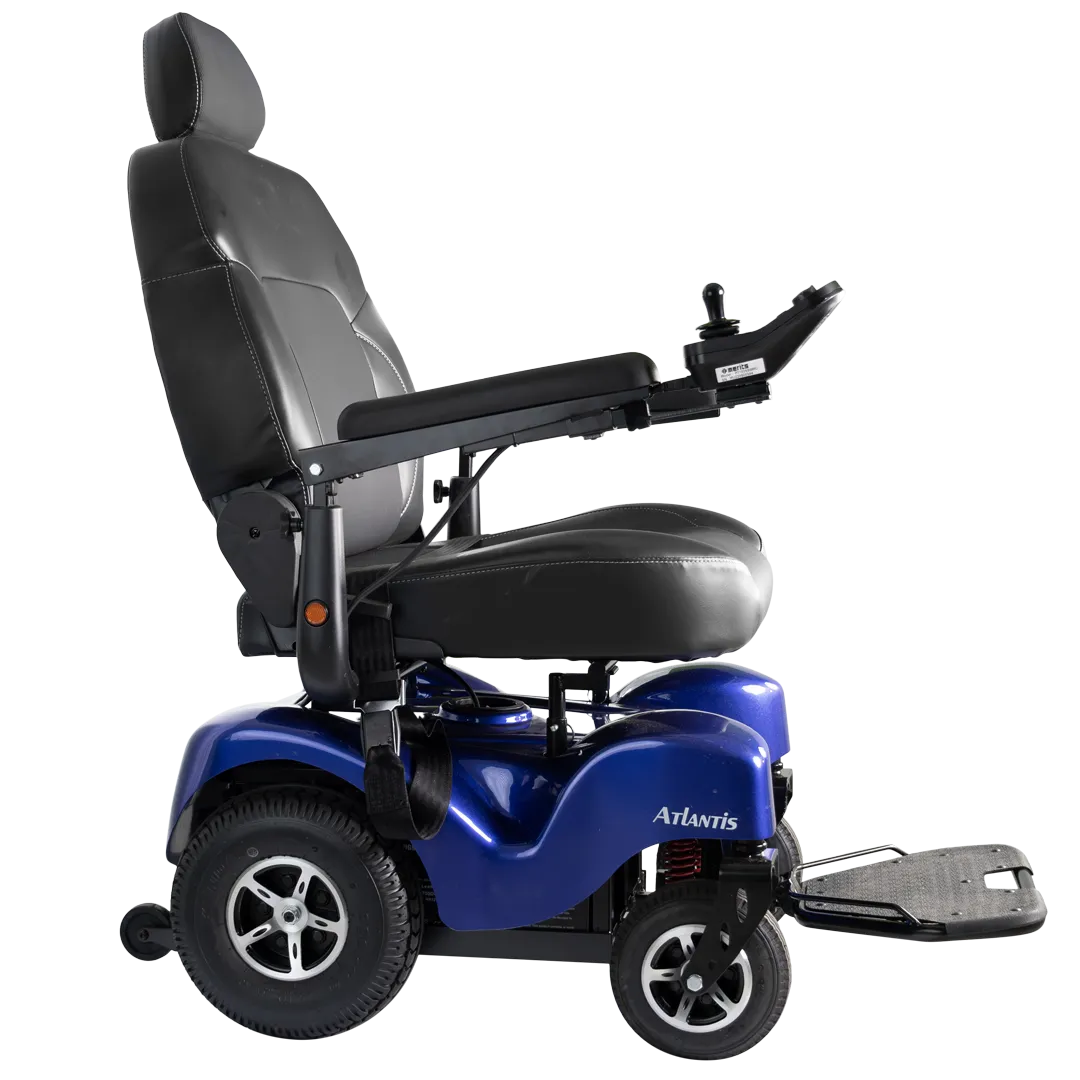

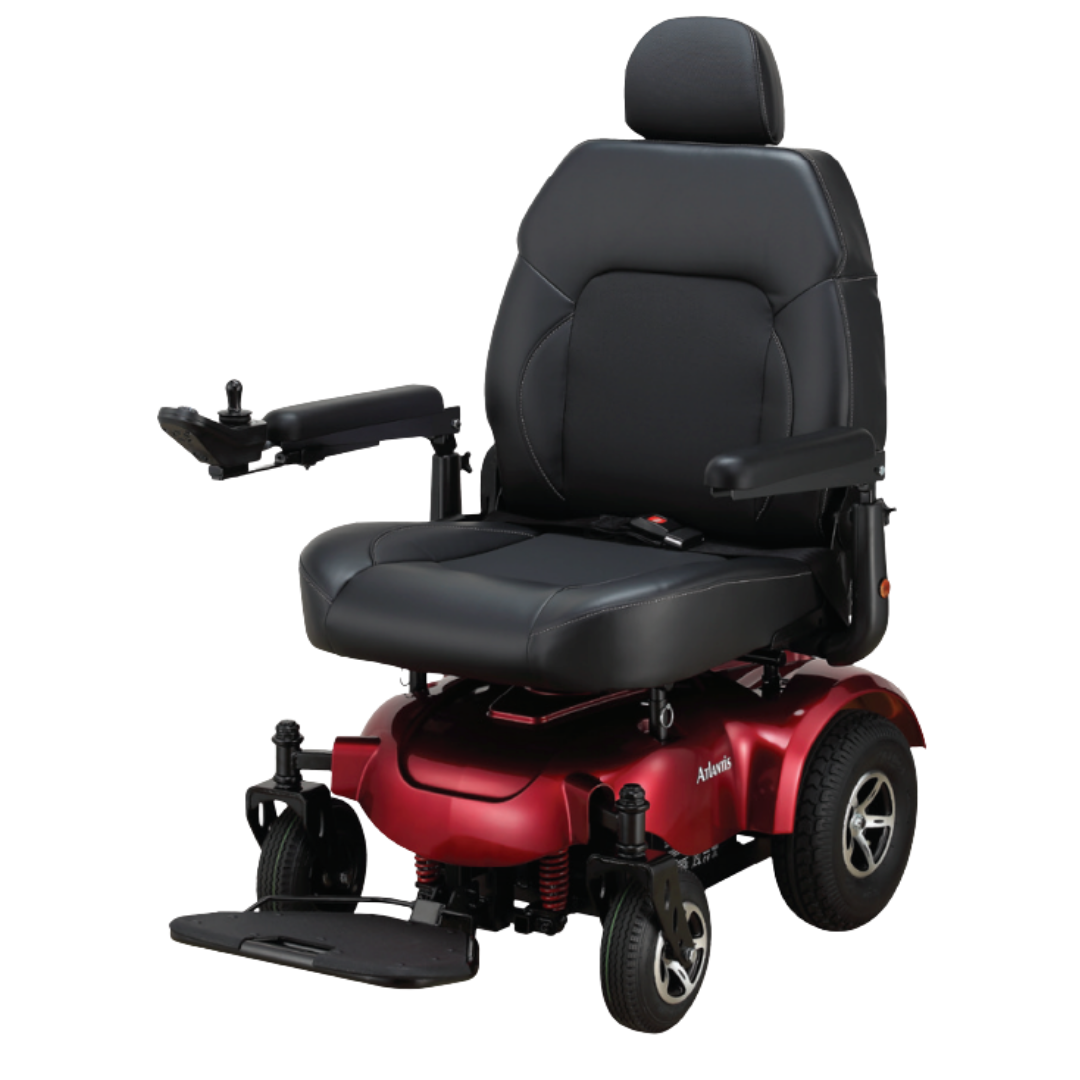

The Merits Atlantis is a rear-wheel-drive heavy-duty power wheelchair built around a 600 lb weight capacity. Four seat posts reinforce the seating structure, creating a substantial frame designed specifically for higher-capacity use.
Extra-wide seating can be configured around the rider
The Atlantis is available with 24" or 26" seat-width options, while seat depth can be adjusted from 20" to 22" in 1-inch increments. Its extra-wide seat and high backrest (21.25" backrest height) provide the more substantial seating dimensions expected from a heavy-duty chair.
The backrest can semi-recline up to 135°, while height-adjustable flip-up armrests provide additional positioning flexibility.
High-power motors are designed for demanding inclines
The Atlantis uses high-power in-line motors, which Merits specifically states help the chair negotiate 10° uphill ramps. Two 75Ah Group 24 AGM batteries support a driving range of up to 32 miles per charge, giving the chair substantial range alongside its heavy-duty construction.
Pneumatic tires add ride compliance to the heavy-duty base
The chair rides on 9-inch pneumatic front tires and 12-inch pneumatic drive tires. Pneumatic construction allows the tires themselves to absorb some surface irregularities, complementing the Atlantis's larger, reinforced platform.
Rear anti-tip wheels are included, along with a seat belt and reflectors for additional everyday equipment.
An extra-wide footplate complements the larger seating system
A broad footplate provides additional room at the front of the chair and incorporates a handle opening for easier handling when needed.
Combined with the wider seating, flip-up armrests, and heavy-duty frame, the Atlantis is designed around accommodating a larger seating configuration rather than maintaining the compact dimensions of a standard power wheelchair.
Heavy-duty capability comes with substantial size and weight
The Atlantis weighs 304 lbs total, with a 167 lb heaviest piece. Its 31.5-inch turning radius also reflects the additional space required by a chair designed around 600 lb capacity and extra-wide seating.
If you plan to transport it regularly, a compatible vehicle lift can make loading and traveling with the chair much more practical without requiring you to manually handle its substantial weight.
