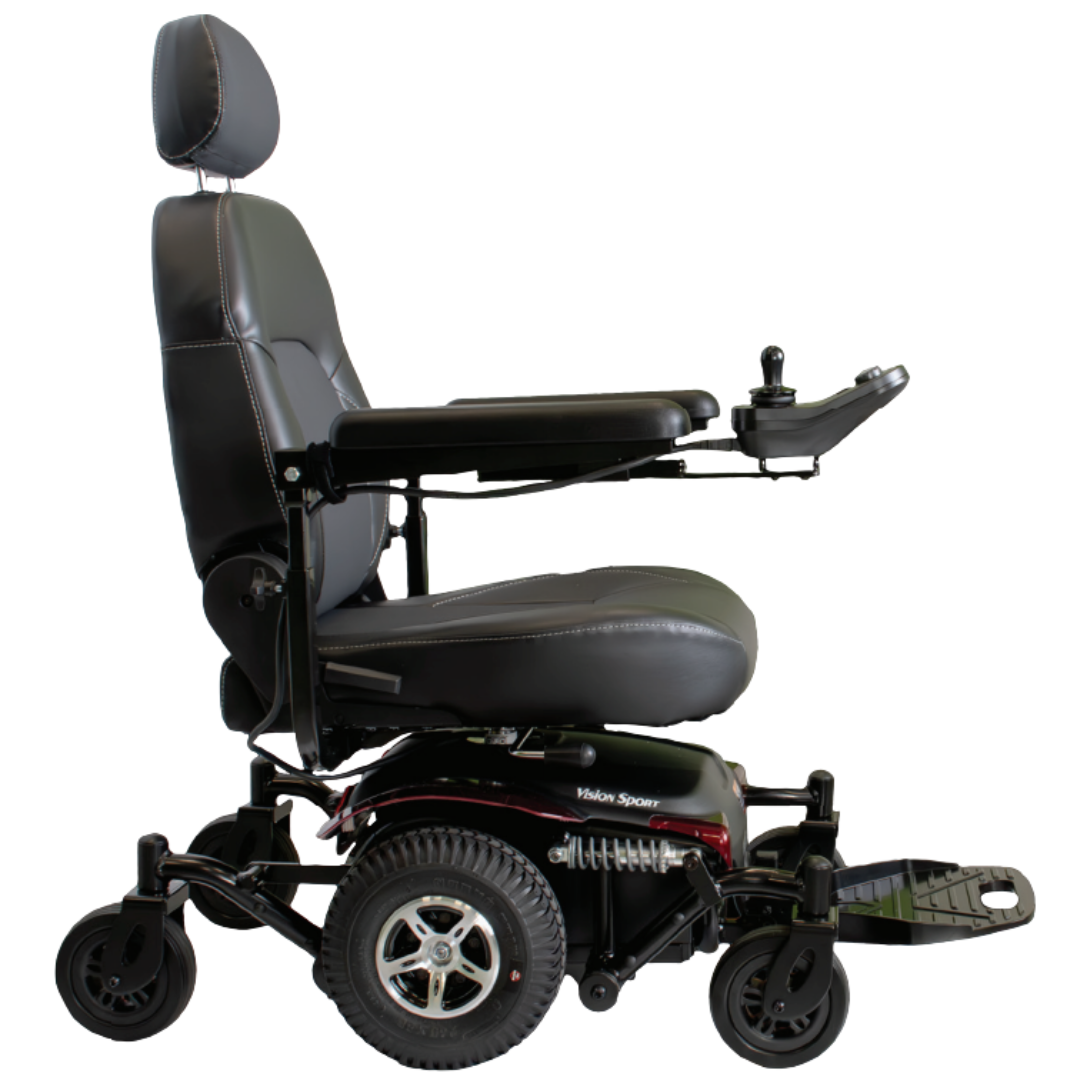

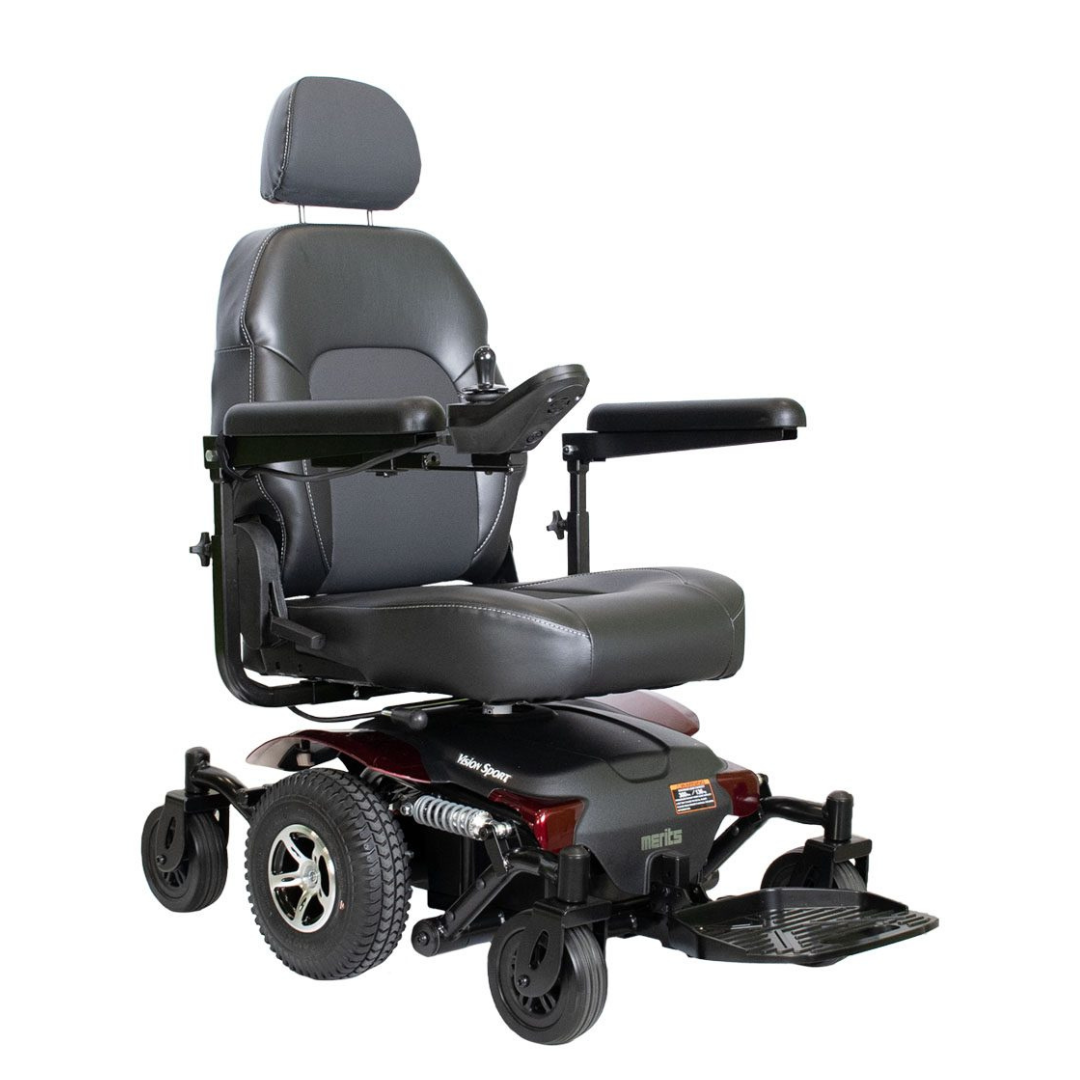

Example: Merits Vision Sport Full Size Electric Wheelchair P326E

Mid-wheel drive with a tight 20-inch turning radius

The Merits Vision Sport uses true mid-wheel drive with a 20-inch turning radius, placing the drive wheels near the center of the chair for highly responsive maneuvering in homes, hallways, shops, and other tighter spaces.

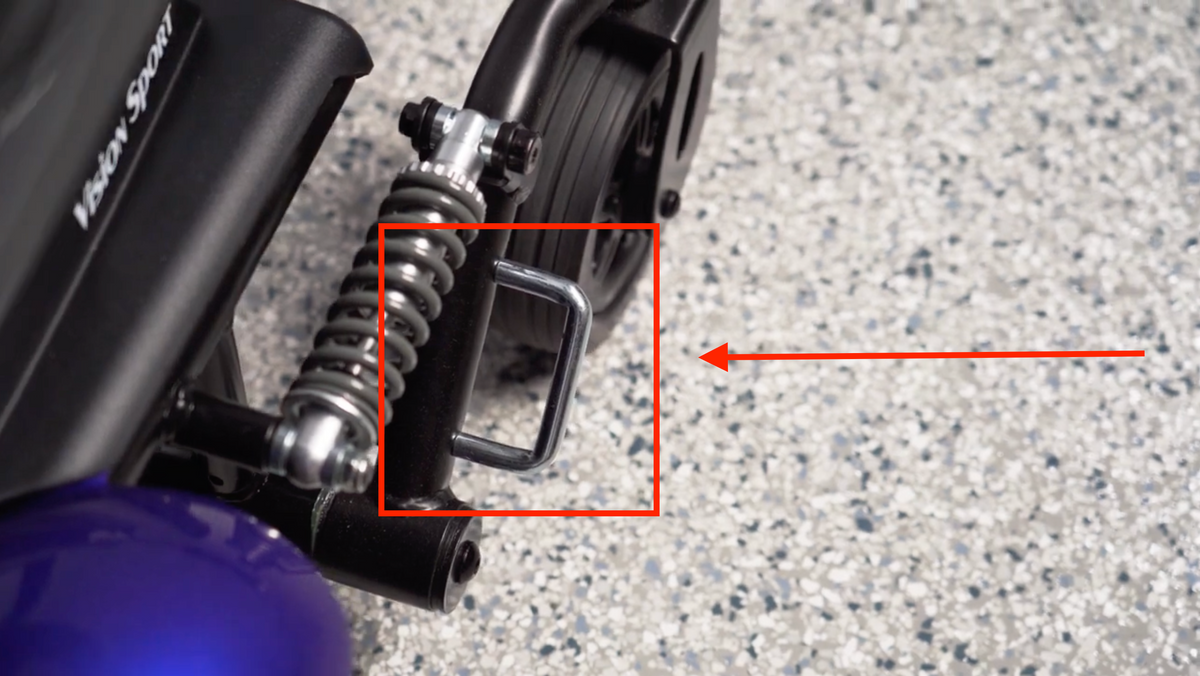

Independent suspension supports stability at the front of the chair

One of the Vision Sport's standout features is its independent suspension system, which Merits states can support up to 250 lbs on the footplate without the chair tipping forward.

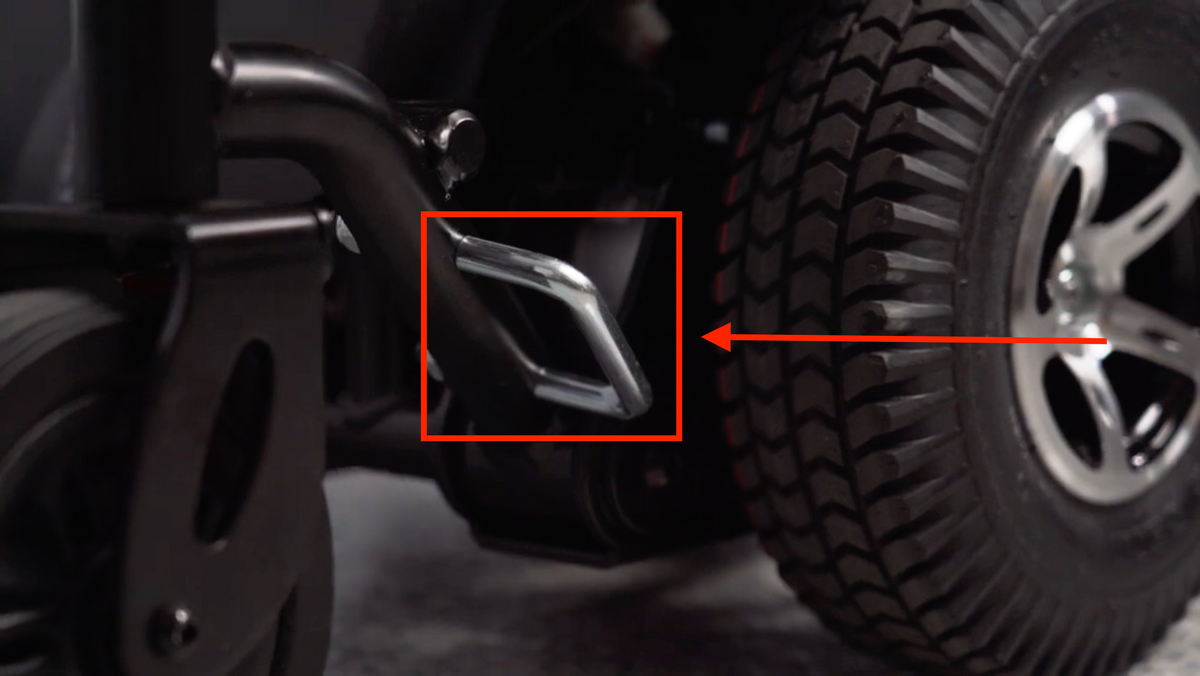

A patented articulation mechanism also allows the front casters to move over thresholds and similar surface changes more easily, helping the chair maintain contact as the front of the base moves over an obstacle.

Premium ergonomic captain's seat with white stitching semi-reclines up to 135°

The Vision Sport can be configured with 16" to 20" seat widths and depths, with captain or pan seating available. Its premium ergonomic captain's seat with white stitching semi-reclines up to 135°, giving you more flexibility to change position throughout the day.

Height- and width-adjustable armrests, an adjustable seat height, and an optional elevating leg-rest kit provide additional ways to configure the chair around you.

A highly adjustable footplate completes the seating setup

The large flip-up aluminum footplate can be adjusted for height, angle, and depth, allowing its position to be tailored alongside the seat and armrests.

A swing-back joystick bracket comes standard, moving the controller away when needed for closer approaches to tables, desks, and other surfaces.

Dual in-line motors and solid tires keep the platform capable and straightforward

The Vision Sport uses dual in-line motors designed to provide efficient power delivery, torque, and performance. 10-inch solid drive tires eliminate the need to monitor tire pressure, while 6-inch solid front and rear casters complete the mid-wheel-drive base.

Dynamic LiNX simplifies programming and diagnostics

A Dynamic LiNX 40A controller supports Bluetooth programming and diagnostics, making configuration and service adjustments more convenient for providers and technicians.

The Vision Sport travels at up to 5 mph, provides up to 18 miles of range per charge, and supports up to 300 lbs.

A full-size power chair centered on suspension and maneuverability

At 184 lbs total, with a 90 lb heaviest piece, the Vision Sport is a substantial full-size chair rather than a portable model.

If you plan to transport it regularly, a compatible vehicle lift can make loading and traveling with the chair much more practical without requiring you to manually handle its substantial weight.

Its combination of mid-wheel maneuverability, independent suspension, articulating front casters, adjustable seating, and a highly configurable footplate makes the Vision Sport particularly focused on ride support and everyday maneuverability.

Front-wheel drive built for exceptionally tight maneuvering

The Merits Vision CF combines front-wheel drive with a 17-inch turning radius, giving it particularly compact maneuverability for a full-size power wheelchair. The drive wheels lead the chair through turns, making the Vision CF well suited to navigating homes, hallways, shops, and other spaces where turning room matters.

Adjustable seating with up to 135° of recline

The Vision CF can be configured with 16" to 20" seat widths and seat depths, providing several options for matching the chair to your preferred fit.

Its ergonomic seating semi-reclines up to 135°, allowing you to change your seating position throughout the day. An optional elevating leg-rest kit is also available for additional positioning flexibility.

A large footplate and simplified frame add everyday practicality

A large flip-up aluminum footplate provides a substantial foot platform and moves out of the way when needed. The chair's simplified frame also uses a removable shroud, providing easier access to internal components for maintenance.

Knobby drive tires pair with a compact FWD platform

The Vision CF uses 9-inch foam-filled knobby drive tires, eliminating the need to monitor tire pressure while providing a tread pattern designed for additional traction.

Its 2.4 inches of ground clearance and front-wheel-drive configuration complement a chair primarily designed around maneuverability and everyday mobility rather than the larger footprint of heavier power-chair platforms.

Dynamic LiNX brings programming and diagnostics to the controller

The Dynamic LiNX 40A controller supports Bluetooth programming and diagnostics, giving providers and technicians convenient access when the chair requires configuration or servicing.

With a 4 mph maximum speed, up to 18 miles of range, and a 300 lb weight capacity, the Vision CF combines its compact handling with practical everyday performance.

A full-size chair centered on maneuverability and adjustability

At 154 lbs total, with a 62.7 lb heaviest piece, the Vision CF is lighter than some full-size power wheelchairs but is not designed around frequent manual lifting.

If you plan to transport it regularly, a compatible vehicle lift can make loading and traveling with the chair more practical without requiring you to manually handle its substantial weight.

Its combination of true front-wheel drive, a 17-inch turning radius, customizable seating, semi-recline, and Dynamic LiNX controls makes maneuverability and configuration the central strengths of the Vision CF.

Compact maneuverability in a full-size power wheelchair

The Merits Regal combines a compact rear-wheel-drive power base with a 21-inch turning radius, giving it maneuverability that stands out within a full-size power wheelchair design.

Its lower seating position and low center of gravity are designed to support easier side transfers and stable riding, while the seat can rotate 45° to further simplify approaching or leaving the chair from the side.

Choose the seating configuration that fits you

The Regal offers 16", 18", or 20" seat widths with either captain or pan seating configurations. The ergonomic captain seat can semi-recline up to 135°, allowing you to change your seating position throughout the day.

Height-adjustable flip-up armrests provide additional positioning flexibility while moving out of the way when needed for transfers.

Flat-free tires keep everyday maintenance simple

The Regal rides on 8-inch foam-filled front tires and 10-inch foam-filled drive tires, so there is no tire pressure to monitor. The larger drive tires also use a knobby tread designed to provide additional traction.

Rear anti-tip wheels are included as part of the chair's standard configuration.

Up to 18 miles of everyday range

With a 5 mph maximum speed and up to 18 miles of range per charge, the Regal provides the performance needed for longer periods of everyday use without moving into a substantially larger power-chair platform.

Its 3 inches of ground clearance provides additional space beneath the chair for navigating minor everyday surface changes and obstacles.

Dynamic LiNX control simplifies operation and servicing

The Dynamic LiNX controller provides the Regal's joystick control system while also supporting programming and diagnostic functions for service and adjustment.

Power comes from dual motors paired with two 33Ah U1 AGM batteries and a 5A off-board charger.

A full-size chair built around maneuverability and seating flexibility

The Regal's strongest combination is its compact RWD base, 21-inch turning radius, adjustable seating choices, semi-reclining seat, and low seating position.

At 197.5 lbs total, it is considerably heavier than a portable power wheelchair. If you plan to transport it regularly, a properly rated compatible vehicle lift can make loading and traveling with the chair much more practical without requiring you to manually handle its substantial weight.
